L45+ to L132RS
CompAir lubricated rotary screw compressors incorporate the very latest technological advances and guarantee a continuous supply of high quality compressed air.
Share
New CompAir FourCore range balances two-stage efficiency with single-stage footprint
CompAir has announced the launch of its new 110 to 250 kW FourCore compressor range, combining best-in-class compressed air efficiency with a small footprint and sustainable design for eco-conscious businesses.
The FourCore range offers all the capabilities of a two-stage compressor, but with only the footprint of a single-stage unit. It therefore provides businesses – who might not have previously had the on-site space available – the opportunity to take advantage of the capabilities of two-stage technology. And when compared with previous single-stage compressors in this size range from CompAir, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution for decision makers.
Our application engineering team, based at the Simmern Centre of Excellence production site in Germany has designed and engineered a brand new, patented technology that offers best-in-class energy efficiency. They have developed a premium efficiency 2-stage model for fixed and regulated speed compressors using the new technology of the compact double stage airend. What’s unique about this design is that the airend has 1 motor and 4 rotors located in a single, semi-integrated casting. This differs from traditional 2-stage compressors, providing a compact package with high energy savings. In fact, these machines are the same size as a 1 stage machine due to new airend technology.
Click the design tab above to learn more
The new FourCore compressor airend

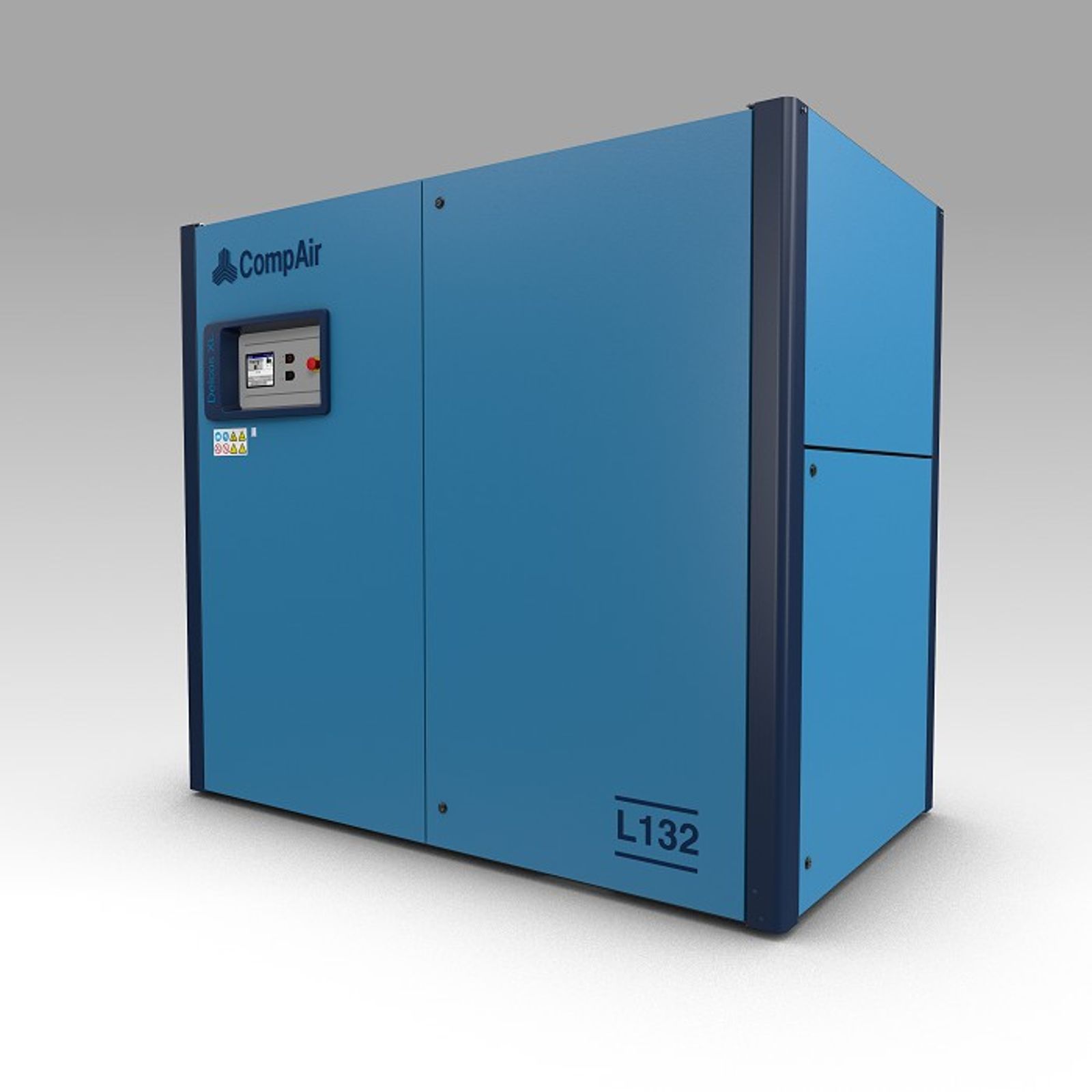

The L-Series from CompAir

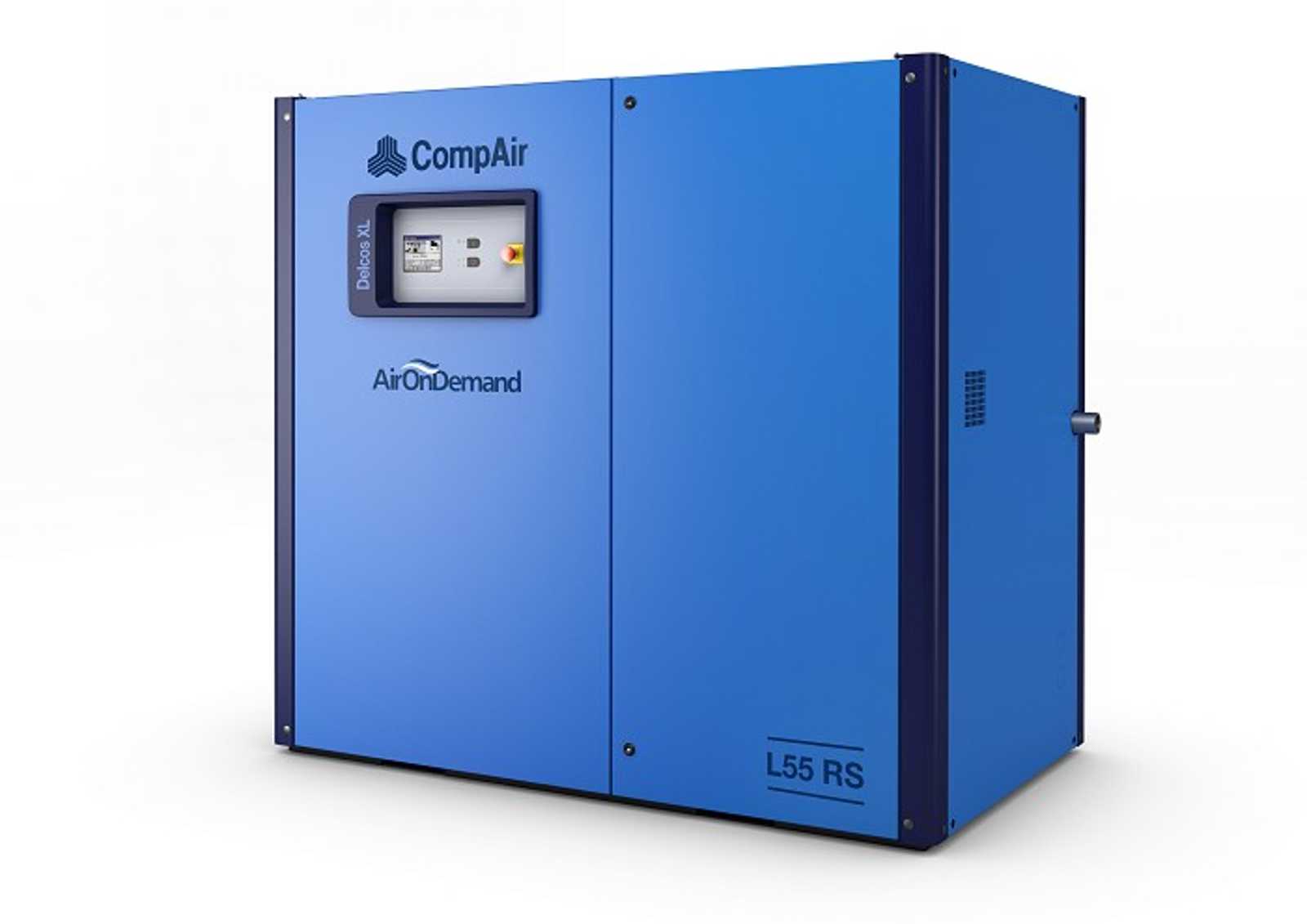

Well known in the industry for quality and reliability, CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L45+ - L132 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models. All models are optionally available with integrated heat recovery.
Benefits:
- Engineering Excellence
- Premium Efficiency Airend
- Wide Regulation Range
- Perfect Motor - Drive - Airend Design
- Compressed Air Purification
- Water Separator
- Compressed Air Filter
- Condensate Drain Solution
- Compressed Air Refrigerant Dryer
- Heatless Desiccant Dryers
- Heat Regenerative Desiccant Dryers
- Nitrogen Generator
- SmartAir Master Multi Compressor Controllers

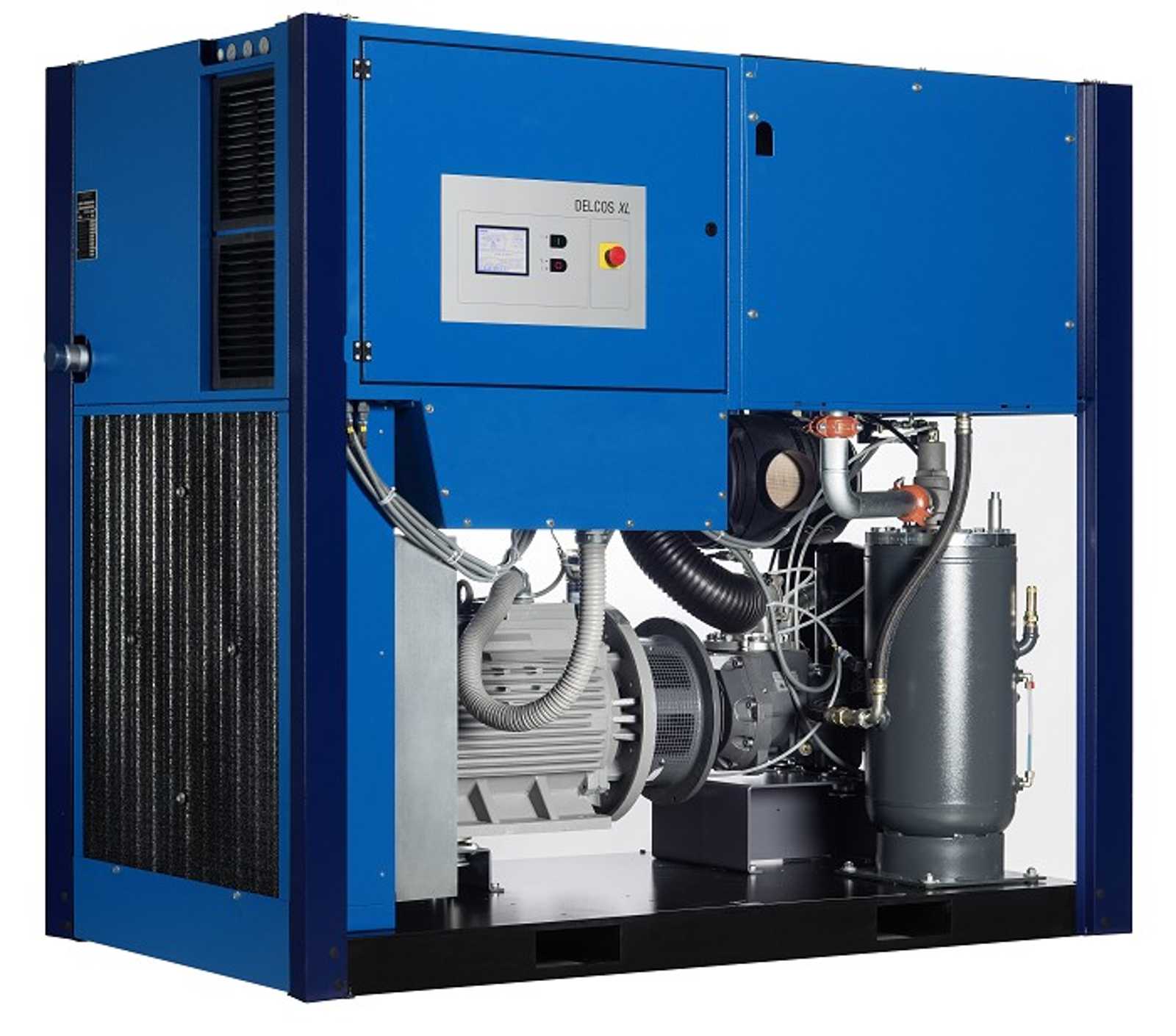

Exceptional Reliability & Performance
- Large Surface After Cooler
- High Performance Separator Filter
- High Efficiency Electric Motor
- Thermostatically Controlled Motor Driven Fan
- Long Life Premium Synthetic Oil Factory Filled
- Highest Quality Connections
Outstanding Energy Efficiency and High Flow Rates
The new 110 and 132kW units offer outstanding energy efficiency and high flow rates allowing in some cases for smaller compressors to be installed, leading to less kW consumption, less noise, less parts and of course less investment.

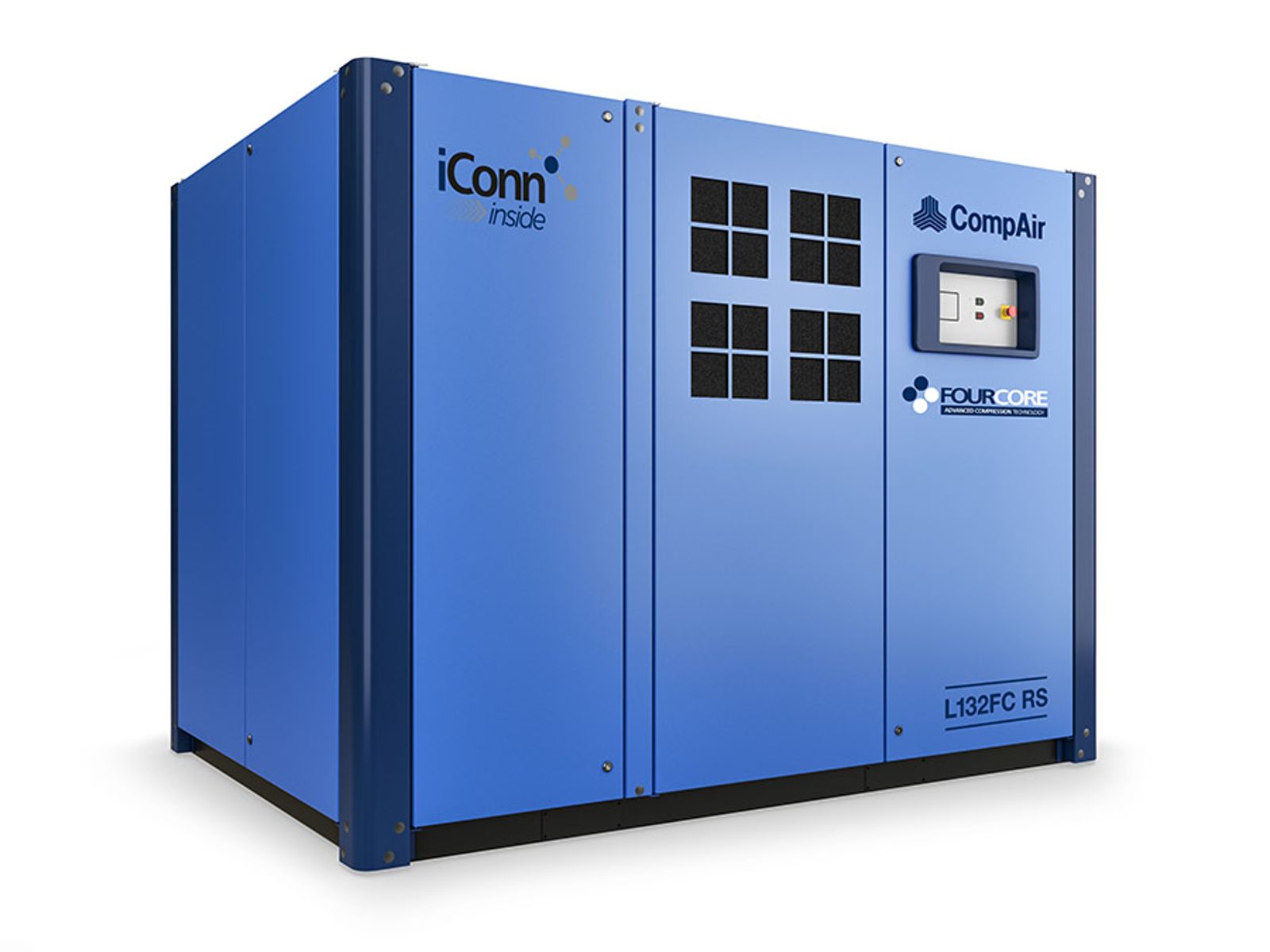

The new two stage units at fixed L110/132FC and variable speed L110-132FC-RS offer up to 13% energy savings and up to 17% higher flow rate compare to the 1-stage machines in our L range (L110/132e and L110-132RS).
The new variants have all the benefits of a two-stage compressor featuring our innovative semi integrated air end GD10-DS and IE4 electric motor as a standard. Available in both air-cooled and water-cooled models, as well as variable speed and fixed speed options, the compressors are supported by CompAir's Assure warranty.
New generation FourCore airend technology
- Very compact & very low weight
- Highest efficiency
- Semi-Integration of the oil filter, oil stop valve, oil distribution system, and oil temperature valve:
- Less hoses and hydraulic pipes ➞ less costs
- No leakages
- High flexibility by a 2-step drive gear configuration ➞ UNIQUE to CompAir
- Constant interstage pressure ➞ better efficiency
- Compact design
- Designed to implement in current L-Range ➞ UNIQUE to CompAir
- Fixed and variable speed versions possible
Delcos XL Innovative Touch Screen Compressor Controller
The Delcos XL with its high resolution touch screen display is extremely user-friendly and self-explanatory. All functions are clearly structured in five main menus and are intuitively visual. The multilingual Delcos XL control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters, which is essential for reducing your running costs.
Features & functions
- Home Page - instant overview of the compressor status
- Real Time Clock- allows pre-setting of compressor starting / stopping
- Second Pressure Setting
- Integrated Cooling and Dryer Control
- Fault History Log - for in-depth analysis
- Remote Control via Programmable Inputs
- Auto Restart after Power Failure
- Optional Base Load Sequencing
- SD Card - stores several run characteristics

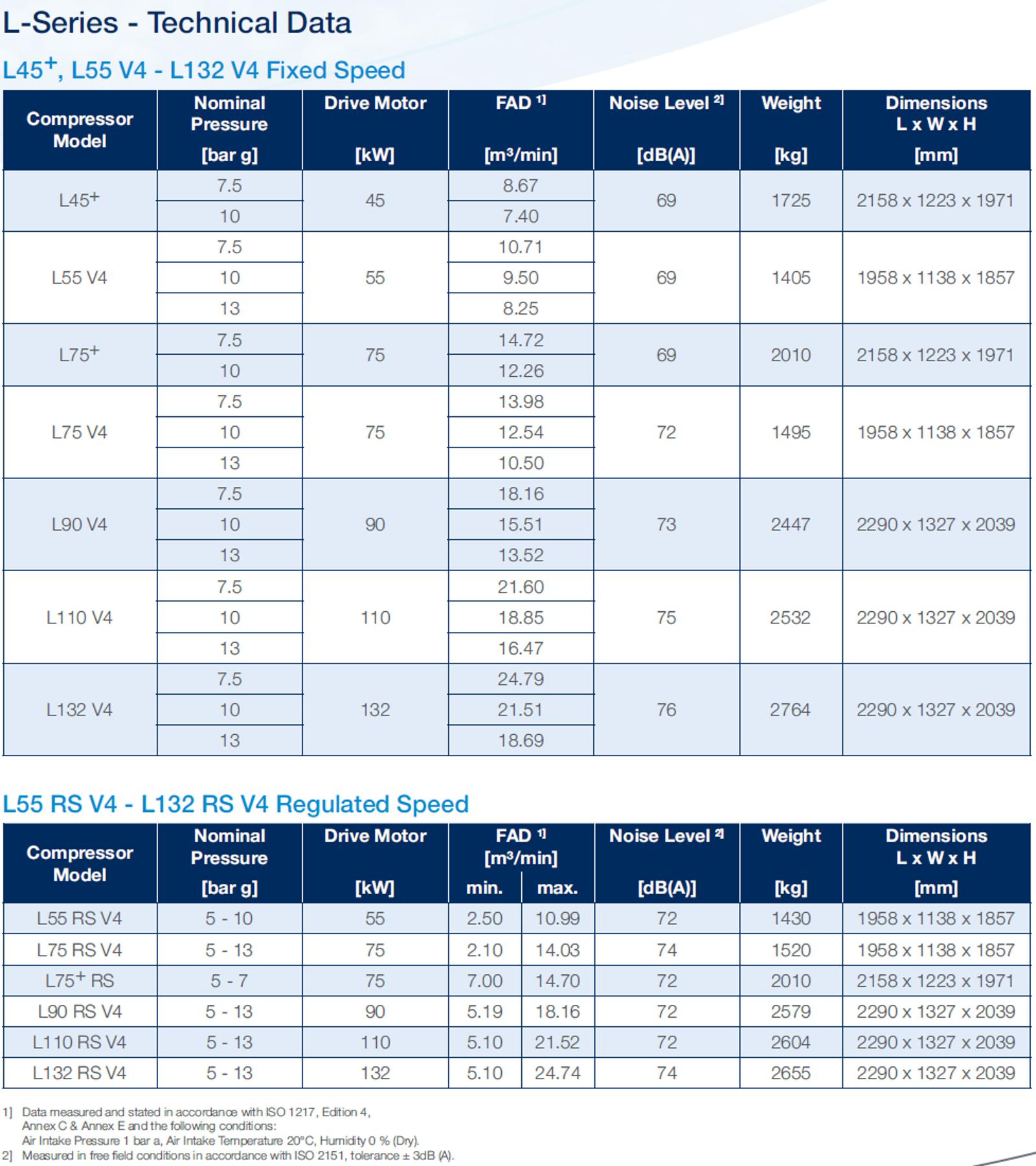

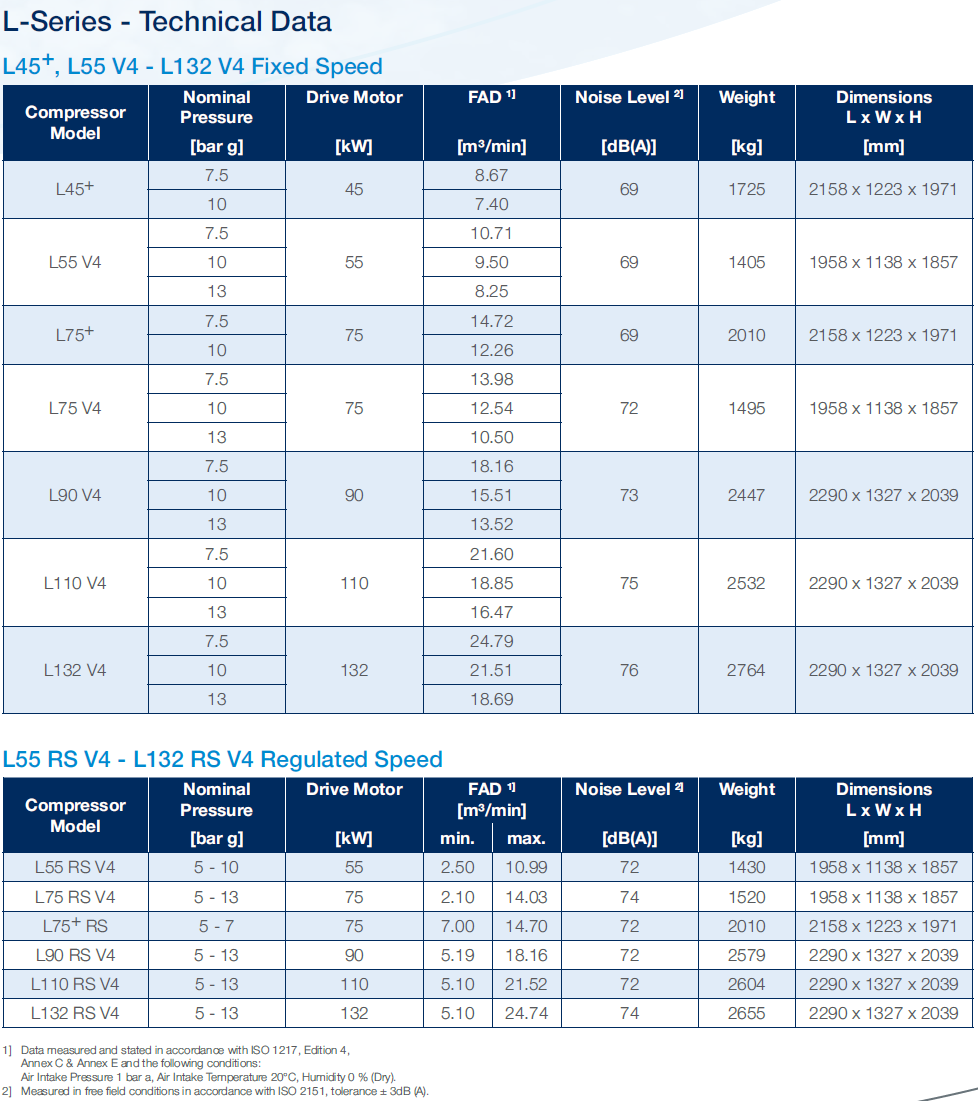

Technical Data
Fourcore Models Performance Data
Benefits
New CompAir FourCore range balances two-stage efficiency with single-stage footprint
CompAir has announced the launch of its new 110 to 250 kW FourCore compressor range, combining best-in-class compressed air efficiency with a small footprint and sustainable design for eco-conscious businesses.
The FourCore range offers all the capabilities of a two-stage compressor, but with only the footprint of a single-stage unit. It therefore provides businesses – who might not have previously had the on-site space available – the opportunity to take advantage of the capabilities of two-stage technology. And when compared with previous single-stage compressors in this size range from CompAir, the new models are up to 8 per cent more efficient, offering a best-in-class oil-lubricated solution for decision makers.
Our application engineering team, based at the Simmern Centre of Excellence production site in Germany has designed and engineered a brand new, patented technology that offers best-in-class energy efficiency. They have developed a premium efficiency 2-stage model for fixed and regulated speed compressors using the new technology of the compact double stage airend. What’s unique about this design is that the airend has 1 motor and 4 rotors located in a single, semi-integrated casting. This differs from traditional 2-stage compressors, providing a compact package with high energy savings. In fact, these machines are the same size as a 1 stage machine due to new airend technology.
Click the design tab above to learn more
The new FourCore compressor airend
The L-Series from CompAir
Well known in the industry for quality and reliability, CompAir continuously develops the L-Series achieving cutting edge performance and efficiency. The L45+ - L132 range of lubricated screw compressors comprises of fixed speed and regulated speed (RS) models. All models are optionally available with integrated heat recovery.
Benefits:
- Engineering Excellence
- Premium Efficiency Airend
- Wide Regulation Range
- Perfect Motor - Drive - Airend Design
- Compressed Air Purification
- Water Separator
- Compressed Air Filter
- Condensate Drain Solution
- Compressed Air Refrigerant Dryer
- Heatless Desiccant Dryers
- Heat Regenerative Desiccant Dryers
- Nitrogen Generator
- SmartAir Master Multi Compressor Controllers
Design
Exceptional Reliability & Performance
- Large Surface After Cooler
- High Performance Separator Filter
- High Efficiency Electric Motor
- Thermostatically Controlled Motor Driven Fan
- Long Life Premium Synthetic Oil Factory Filled
- Highest Quality Connections
Outstanding Energy Efficiency and High Flow Rates
The new 110 and 132kW units offer outstanding energy efficiency and high flow rates allowing in some cases for smaller compressors to be installed, leading to less kW consumption, less noise, less parts and of course less investment.
The new two stage units at fixed L110/132FC and variable speed L110-132FC-RS offer up to 13% energy savings and up to 17% higher flow rate compare to the 1-stage machines in our L range (L110/132e and L110-132RS).
The new variants have all the benefits of a two-stage compressor featuring our innovative semi integrated air end GD10-DS and IE4 electric motor as a standard. Available in both air-cooled and water-cooled models, as well as variable speed and fixed speed options, the compressors are supported by CompAir's Assure warranty.
New generation FourCore airend technology
- Very compact & very low weight
- Highest efficiency
- Semi-Integration of the oil filter, oil stop valve, oil distribution system, and oil temperature valve:
- Less hoses and hydraulic pipes ➞ less costs
- No leakages
- High flexibility by a 2-step drive gear configuration ➞ UNIQUE to CompAir
- Constant interstage pressure ➞ better efficiency
- Compact design
- Designed to implement in current L-Range ➞ UNIQUE to CompAir
- Fixed and variable speed versions possible
Controller
Delcos XL Innovative Touch Screen Compressor Controller
The Delcos XL with its high resolution touch screen display is extremely user-friendly and self-explanatory. All functions are clearly structured in five main menus and are intuitively visual. The multilingual Delcos XL control system ensures reliable operation and protects your investment by continuously monitoring the operational parameters, which is essential for reducing your running costs.
Features & functions
- Home Page - instant overview of the compressor status
- Real Time Clock- allows pre-setting of compressor starting / stopping
- Second Pressure Setting
- Integrated Cooling and Dryer Control
- Fault History Log - for in-depth analysis
- Remote Control via Programmable Inputs
- Auto Restart after Power Failure
- Optional Base Load Sequencing
- SD Card - stores several run characteristics
