Two Stage Oil Free Rotary Screw Compressors DS – Series
CompAir has extended its Oil Free rotary screw compressor range with the new DS37-DS150 fixed and variable speed series.
What it is:
- Class Zero Oil FREE Rotary Screw Compressor
- Nominal Power from 37-150 kW
- Capacity of up to 25.9 m³/min (@ 7 bar g)
- Complementing the established 160 to 315 kW model range
- Fixed Speed and Variable Speed (RS) Models
- Air-cooled
- Numerous Further Options
Share
We are pleased to announce the launch of new oil-free rotary screw compressor models, complementing the established CompAir D-Series range and delivering reliability, dynamic efficiency, lower operating costs, and high-quality oil-free compressed air.
The new models are:
- Class Zero Oil Free Rotary Screw Compressor
- Nominal Power from 37-150 kW
- Capacity of up to 25.9m3/min (@ 7 bar g)
- Complementing the established 160 to 315kW model range
- Fixed Speed and Variable Speed models
- Air cooled
- Numerous Further Options
The range covers air-cooled models from 37 to 150 kW and is available in both fixed and variable speeds delivering ISO 8573-1:2010 Class 0 certified 100% oil-free air for the most critical applications, e.g. within the food and beverage, pharmaceutical, textile, and electronics industries.
Highest productivity
- Oil Free Class 0 certified air delivered for the most demanding industries
- Intuitive Controller with extensive events history and advanced connectivity
- The DS Series range from CompAir is able to withstand the harshest environments and 46°C maximum ambient temperature, reducing unplanned shutdowns caused by high heat, and increasing productivity.
Optimum efficiency
- The range features a robust airend with precision machined gears, oversized bearings, stainless steel air seals, and unique labyrinth oil seal design to eliminate the risk of internal leaks.
- Hot Air Discharge option for lowest pressure dew points without additional energy consumption via HOC dryer
Maximum reliability
- Patented Ultracoat™ treatment of rotors and internalparts of compression chamber to avoid corrosion
- Stainless Steel robust piping design on the cold side
- Efficient inlet air filter for the best care of the air compressed path
- IP65 electrical fittings and control panel
Value added services
- Easy access to main components
- No special tools required
- 8000 hours coolant change interval
- Free iConn inside. A smart, proactive real-time online monitoring service that allows operators to manage the performance of the system through invaluable data statistics and insights, iConn will alert users should a potential issue with the compressed air system arise.
- Service and warranty programs
Robust Long-Life Airend Design
- UltraCoat protection - the most durable coating in the industry
- Precision machined gears
- Oversized bearings
- Stainless steel air seals
- Unique labyrinth oil seal design
- Stainless steel 2nd stage rotors
- Stainless steel, aluminium and treated piping on critical components
Features:
- Large 5.7’’ color display
- Intuitive web-like navigation
- Graphing and data acquisition of over 30 parameters
- Modbus interface for connection to BMS
- Integrated variable speed control
- Ethernet connection allows web enabled control through tablet, computer or mobile device
- iConn remote monitoring
- Direct RS485 connection for SmartAirLite, (SAM requires STD/VSD Module)
Benefits
We are pleased to announce the launch of new oil-free rotary screw compressor models, complementing the established CompAir D-Series range and delivering reliability, dynamic efficiency, lower operating costs, and high-quality oil-free compressed air.
The new models are:
- Class Zero Oil Free Rotary Screw Compressor
- Nominal Power from 37-150 kW
- Capacity of up to 25.9m3/min (@ 7 bar g)
- Complementing the established 160 to 315kW model range
- Fixed Speed and Variable Speed models
- Air cooled
- Numerous Further Options
The range covers air-cooled models from 37 to 150 kW and is available in both fixed and variable speeds delivering ISO 8573-1:2010 Class 0 certified 100% oil-free air for the most critical applications, e.g. within the food and beverage, pharmaceutical, textile, and electronics industries.
Highest productivity
- Oil Free Class 0 certified air delivered for the most demanding industries
- Intuitive Controller with extensive events history and advanced connectivity
- The DS Series range from CompAir is able to withstand the harshest environments and 46°C maximum ambient temperature, reducing unplanned shutdowns caused by high heat, and increasing productivity.
Optimum efficiency
- The range features a robust airend with precision machined gears, oversized bearings, stainless steel air seals, and unique labyrinth oil seal design to eliminate the risk of internal leaks.
- Hot Air Discharge option for lowest pressure dew points without additional energy consumption via HOC dryer
Maximum reliability
- Patented Ultracoat™ treatment of rotors and internalparts of compression chamber to avoid corrosion
- Stainless Steel robust piping design on the cold side
- Efficient inlet air filter for the best care of the air compressed path
- IP65 electrical fittings and control panel
Value added services
- Easy access to main components
- No special tools required
- 8000 hours coolant change interval
- Free iConn inside. A smart, proactive real-time online monitoring service that allows operators to manage the performance of the system through invaluable data statistics and insights, iConn will alert users should a potential issue with the compressed air system arise.
- Service and warranty programs
Design

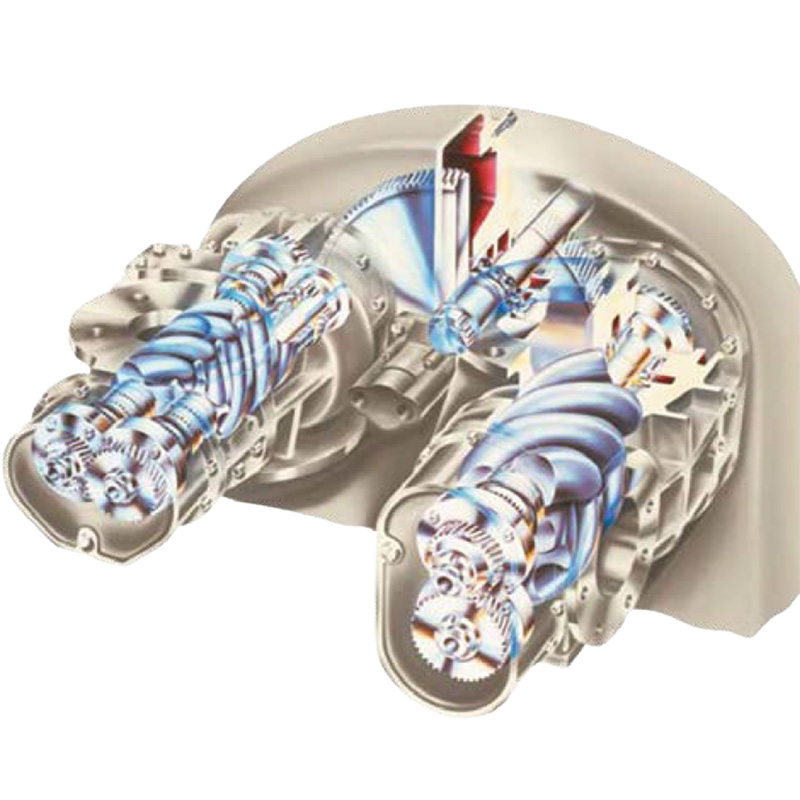

Robust Long-Life Airend Design
- UltraCoat protection - the most durable coating in the industry
- Precision machined gears
- Oversized bearings
- Stainless steel air seals
- Unique labyrinth oil seal design
- Stainless steel 2nd stage rotors
- Stainless steel, aluminium and treated piping on critical components
Controller
Features:
- Large 5.7’’ color display
- Intuitive web-like navigation
- Graphing and data acquisition of over 30 parameters
- Modbus interface for connection to BMS
- Integrated variable speed control
- Ethernet connection allows web enabled control through tablet, computer or mobile device
- iConn remote monitoring
- Direct RS485 connection for SmartAirLite, (SAM requires STD/VSD Module)
